Dynapac CC1300C Plus Combi rollers

0
My comparison
  • Pictures

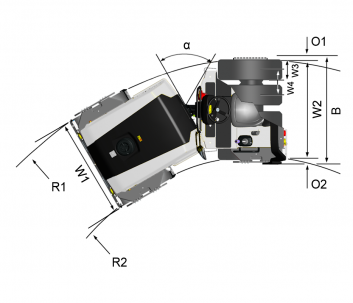

  • Dimensions
A. Wheelbase 1925 mm
B. Width 1370 mm
C. Curb clearance 600 mm
D. Drum diameter 802 mm
H1. Height, with ROPS 2750 mm
H2. Height, w/o ROPS/cab 1855 mm
K. Ground clearance 260 mm
L. Length 2725 mm
O1. Overhang, right 44 mm
O2. Overhang, left 44 mm
R1. Turning radius, outside 4240 mm
R2. Turning radius, inside 2940 mm
S. Drum shell thickness 16 mm
W1. Drum width 1300 mm
W2. Width, wheel module 1282 mm
W3. Width, tyre 285 mm
W4. Wheel track 305 mm
α. Steering angle ±30°
Discontinued true
Operating Mass: 3750 kg
Static linear load: 14.8 kg/cm
Compaction width: 1300 mm

Technical data

Masses
Max. operating mass 3900 kg
Operating mass (incl. ROPS) 3750 kg
Module mass (front/rear) 1930 kg/ 1820 kg
Traction
Speed range 0-10 km/h
Max. theoretical gradeability 37 %
Engine
Manufacturer/Model Kubota V2203-M (IIIA)
Type Water cooled diesel engine
Rated power, SAE J1995 33 kW (44 hp) @ 2600 rpm
Fuel tank capacity 50 l
Alternative Engine
Manufacturer/Model Kubota D1803-CR-TE4B(T4f)
Type Water cooled diesel engine
Rated power, SAE J1995
Alternative Engine
Manufacturer/Model Kubota D1803-CR-TE5B(StageV)
Type Water cooled diesel engine
Rated power, SAE J1995 37 kW (49 hp ) @ 2700 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Radial piston motors (3) with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Secondary brake		 Failsafe multidisc on drum and wheel motors.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Back up alarm kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4812115257 BACK UP ALARM
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4700938893
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4700938909
Rotating beacon kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4812115254 ROTATING BEACON WHEN ROPS
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4700938915 12mm
Seat belt kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4812115298 SEAT BELT 2" FOR ROPS
COMPACTION Combi rollers 4700391656 SMV (SLOW MOVING VEHICLE) SIGN
Service kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4812159572 Start up kit
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4812156268 No Oil
COMPACTION Combi rollers 4812159567 Inc. Oil
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4812156288 No Oil
COMPACTION Combi rollers 4812159564 Inc. Oil
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4812156266 No Oil
COMPACTION Combi rollers 4812159565 Inc. Oil
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4812156265 No Oil
COMPACTION Combi rollers 4812159563 Inc. Oil
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4812156288 No Oil
COMPACTION Combi rollers 4812159564 Inc. Oil
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4700938887 Drum
Spring loaded scrapers kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4812115261 SPRING LOADED SCRAPERS (CC1300)
COMPACTION Combi rollers 4812115263 SPRING LOADED SCRAPERS (CC1300C)
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4700940594
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Combi rollers 4700938575

Spare parts manuals

Eager to see the spare parts of Dynapac CC1300C Plus?

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Optional

■ 3” seatbelt
■ Biodegradable hydraulic fluid
■ Cert. Fire protection (SBF 127)
■ Decal risk location (GOST)
■ Driving lights (right and left handed). Dual forward/reverse control
■ Fire extinguisher, Flow divider
■ Foot rest
■ Hearing protectors
■ Licence plate light
■ Rear view mirror (traffic view)
■ Rotating beacon(ignition controlled)
■ Service kit 50/500/1000H
■ Side direction lights (driving lights required)
■ Slide lux seat
■ Slow moving vehicle sign
■ Special color (one or two)
■ Spring loaded scrapers
■ Tool set
■ Towing eyelet
■ Water tank cover(lockable)

Compaction data

AsphaltComp infoAsphaltComp info1657ACbaseC24on/off1.51894100.2on5624off70.82017-08-15 15:14:25Dynapac CC1300C PlusACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1657ACbaseN24off1.51894.5100.7on5674off70.82017-08-15 15:14:25Dynapac CC1300C PlusACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1657ACbindC24on/off1.51894100.2on5624off70.82017-08-15 15:14:25Dynapac CC1300C PlusACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1657ACbindN24off1.51894.5100.7on5674off70.82017-08-15 15:14:25Dynapac CC1300C PlusACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1657ACsurfC24on/off1.51894100.2on5624off70.82017-08-15 15:14:25Dynapac CC1300C PlusACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1657ACsurfN24off1.51894.5100.7on5674off70.82017-08-15 15:14:25Dynapac CC1300C PlusACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1657PAC24on/off1.51895.1102.7on5624off70.82017-08-15 15:14:25Dynapac CC1300C PlusPA_CPorous asphalt; CrushedPorous asphalt1657SMAC24on/off1.51894100.2on5624off70.82017-08-15 15:14:25Dynapac CC1300C PlusSMA_CStone mastic asphalt; CrushedStone mastic asphalt226004130068678650105205003000pdfwebtable
