Dynapac CC1300 Plus Double drum vibratory rollers

0
My comparison
  • Pictures

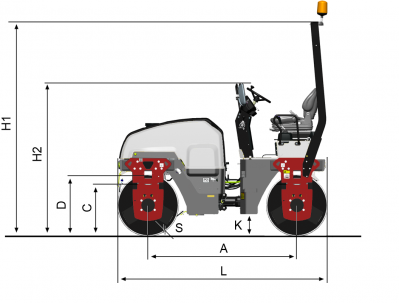

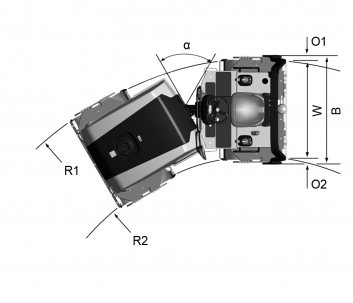

  • Dimensions
A. Wheelbase 1925 mm
B. Width 1450 mm
C. Curb clearance 600 mm
D. Drum diameter 802 mm
H1. Height, with ROPS/cab 2750 mm
H2. Height, w/o ROPS/cab 1855 mm
K. Ground clearance 260 mm
L. Length 2725 mm
O1. Overhang, right 50 mm
O2. Overhang, left 50 mm
R1. Turning radius, outside 4240 mm
R2. Turning radius, inside 2940 mm
S. Drum shell thickness 16 mm
W. Drum width 1300 mm
α. Steering angle ±30°
Discontinued true
Operating Mass: 3900 kg
SLL (front/rear): 14.6/ 15.4 kg/cm
Compaction width: 1300 mm

Technical data

Masses
Max. operating mass 4030 kg
Operating mass (incl. ROPS) 3900 kg
Module mass (front/rear) 1900 kg/ 2000 kg
Traction
Speed range 0-10 km/h
Vertical oscillation ±10°
Max. theoretical gradeability 37 %
Engine
Manufacturer/Model Kubota V2203-M (IIIA)
Type Water cooled diesel engine
Rated power, SAE J1995 33 kW (44 hp ) @ 2600 rpm
Fuel tank capacity 50 l
Alternative Engine
Manufacturer/Model Kubota D1803-CR-TE4B(T4f)
Type Water cooled diesel engine
Rated power, SAE J1995 37 kW (49 hp ) @ 2700 rpm
Alternative Engine
Model Kubota D1803-CR-TE5B(StageV)
Manufacturer/Model
Type Water cooled diesel engine
Rated power, SAE J1995 37 kW (49 hp ) @ 2700 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Radial piston motors (2) with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz
