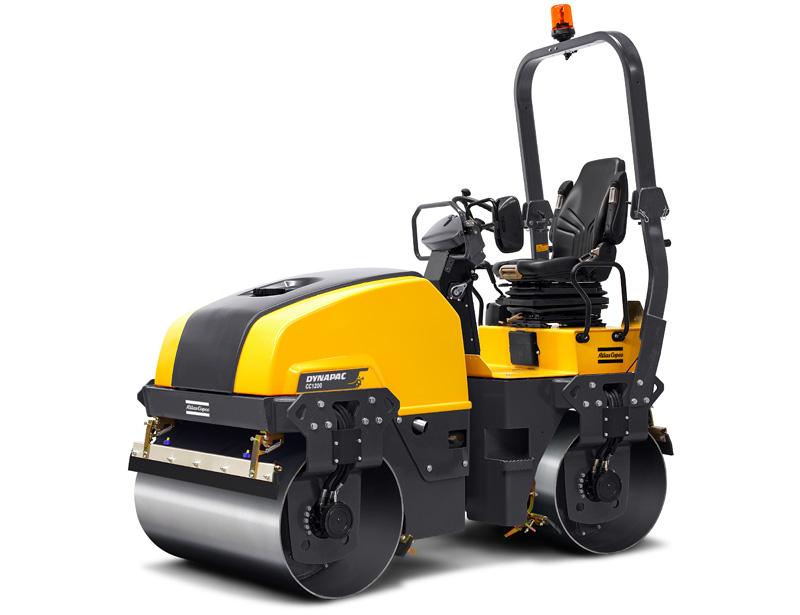

Dynapac CC1200 Plus Double drum vibratory rollers

0
My comparison
  • Pictures
  • Dimensions

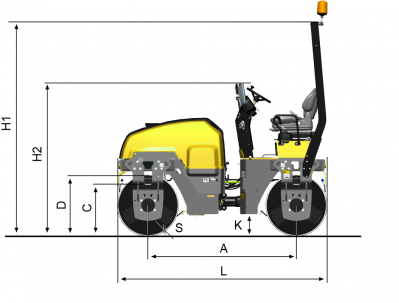

A. Wheelbase 1715 mm
B. Width 1310 mm
C. Curb clearance 550 mm
D. Drum diameter 682 mm
H1. Height, with ROPS/cab 2640 mm
H2. Height, w/o ROPS/cab 1755 mm
K. Ground clearance 175 mm
L. Length 2395 mm
O1. Overhang, right 40 mm
O2. Overhang, left 40 mm

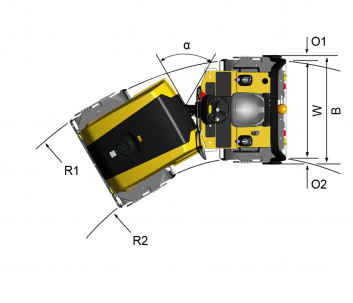

R1. Turning radius, outside 3800 mm
R2. Turning radius, inside 2600 mm
S. Drum shell thickness 13 mm
W. Drum width 1200 mm
α. Steering angle ±30°
Discontinued true
Operating Mass: 2600 kg
SLL (front/rear): 10.5/ 11.2 kg/cm
Compaction width: 1200 mm

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Technical data

Masses
Max. operating mass 2710 kg
Operating mass (incl. ROPS) 2600 kg
Module mass (front/rear) 1260 kg/ 1340 kg
Traction
Speed range (Dual/TC/AS) 0-10 km/h
Vertical oscillation ±10°
Max. theoretical gradeability 43 %
Engine
Manufacturer/Model Kubota D1703-M
Type Water cooled diesel engine
Rated power, SAE J1995 26 kW (35 hp ) @ 2800 rpm
Fuel tank capacity 50 l
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement.
Radial piston motors (2) with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum oil
Type of fluid Volume Additional info
Dynapac Gear Oil 300 5 liters X 2 drums Every 1000 hours or yearly
Engine
Type of fluid Volume Additional info
Dynapac engine Oil 200 7 liters Change oil every 200 hours
Hydraulic system
Type of fluid Volume Additional info
Dynapac Hydraulic 300 45 liters Change oil every 2000 hours (yearly)

Service Kits

Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938892
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938908
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106174
Service kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers (50h) 4812106183 No. Oil
COMPACTION Double drum vibratory rollers (200/600h) 4812106184
COMPACTION Double drum vibratory rollers 4812106187 (400,800h) No. Oil
COMPACTION Double drum vibratory rollers 4812106188 (1000h) No. Oil
COMPACTION Double drum vibratory rollers 4812106190 (50h) Inc. Oil
COMPACTION Double drum vibratory rollers 4812106191 (200,600h) Inc. Oil
COMPACTION Double drum vibratory rollers 4812106192 (400,800h) Inc. Oil
COMPACTION Double drum vibratory rollers 4812106193 (1000h) Inc. Oil
COMPACTION Double drum vibratory rollers 4812106189 Start up kit
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106175
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812161288 50 pieces
COMPACTION Double drum vibratory rollers 4812161289 100 pieces.
COMPACTION Double drum vibratory rollers 4812161290 200 pieces
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938575

Spare parts manuals

Eager to see the spare parts of Dynapac CC1200 Plus?

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Optional

3” seatbelt, Biodegradable hydraulic fluid, Cert. Fire protection (SBF 127), Decal risk location (GOST), Driving lights (right and left handed). Dual forward/reverse control, Fire extinguisher, Flow divider, Foot rest, Hearing protectors, Licence plate light, Rear view mirror (traffic view), Rotating beacon (ignition controlled), Service kit 50/500/1000H, Side direction lights (driving lights required), Slide lux seat, Slow moving vehicle sign, Special color (one or two), Spring loaded scrapers, Tool set, Towing eyelet, Water tank cover (lockable)
