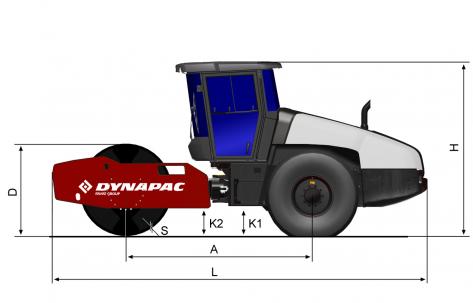

| A. Wheelbase | 3100 mm |
|---|---|
| B1. Width, front | 2380 mm |
| B2. Width, rear | 2130 mm |
| D. Drum diameter | 1546 mm |
| H1. Height, with ROPS/cab | 2890 mm |
| H2. Height, w/o ROPS/cab | 2130 mm |
| K1. Ground clearance | 450 mm |
| K2. Curb clearance | 450 mm |
| L. Length | 6240 mm |
| O1. Overhang, right | 125 mm |
| O2. Overhang, left | 125 mm |
| R1. Turning radius, outside | 5800 mm |
| R2. Turning radius, inside | 3300 mm |
| S. Drum shell thickness | 48 mm |
| W. Drum width | 2130 mm |
| α. Steering angle | ±38° |
The Dynapac compaction control and documentation system for soil and asphalt rollers
A tool to monitor and control their machine fleet efficiently and conveniently.
Big fuel savings with ECO!
header text here
| Masses | |
| Operating mass (incl. ROPS) | 20700 kg |
|---|---|
| Operating mass (incl. Cab) | 20900 kg |
| Module mass (front/rear) | 13950 kg/ 6950 kg |
| Max. operating mass | 21000 kg |
| Traction | |
| Speed range (Dual/TC/AS) | 4/6/7/11 km/h |
| Vertical oscillation | ±9° |
| Tyre size (12 ply) | 23.1 x 26 AW |
| Max. theoretical gradeability | 45 % |
| Engine | |
| Manufacturer/Model | Cummins B4.5 (Stage V / T4final) |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 149 kW (200 hp) @ 2,200 rpm |
| Fuel tank capacity | 255 l |
| DEF tank capacity | 30 l |
| Alternative Engine | |
| Manufacturer/Model | Deutz TCD2012L06 (IIIA/T3) |
| Type | Water cooled turbo Diesel |
| Rated power, ISO 14396 | 150 kW (204 hp ) @ 2200 rpm |
| Hydraulic system | |
| Driving | Hydrostatic |
| Vibration | Hydrostatic |
| Steering | Hydrostatic |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake |
Failsafe multidisc brake in drum gear box and in rear axle. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700940671 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4812269909 | Steel tank |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700945711 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700945710 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700945928 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700945551 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4812161288 | 50 pieces. | |
| COMPACTION | Tandem-Vibrationswalzen | 4812161289 | 100 pieces. | |
| COMPACTION | Tandem-Vibrationswalzen | 4812161290 | 200 pieces. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4812313389 | Service kit 400/800/1200/1600 hours |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4812313390 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4812313391 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4812313387 |
