Dynapac CA610D Single drum vibratory rollers

0
My comparison
  • Experience
  • Pictures
  • Dimensions

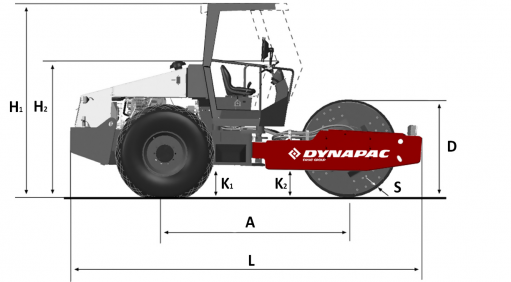

A. Wheelbase 2992 mm
B1. Width, front 2400 mm
B2. Width, rear 2130 mm
D. Drum diameter 1573 mm
H1. Height, with ROPS/cab 3000 mm
H2. Height, w/o ROPS/cab 2238 mm
K1. Ground clearance 450 mm
K2. Curb clearance 460 mm
L. Length 6180 mm
O1. Overhang, right 115 mm
O2. Overhang, left 135 mm

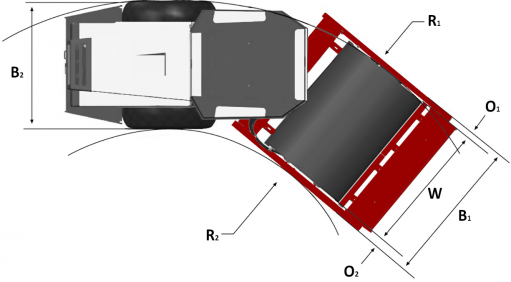

R1. Turning radius, outside 5400 mm
R2. Turning radius, inside 3200 mm
S. Drum shell thickness 50 mm
W. Drum width 2130 mm
α. Steering angle ±38°
Discontinued false
Operating Mass: 20700 kg
Static linear load: 66 kg/cm
Compaction width: N/A

Technical data

Masses
Operating mass (incl. ROPS) 20700 kg
Module mass (front/rear) 14050 kg/ 6650 kg
Max. operating mass 21000 kg
Traction
Speed range (Dual/TC/AS) 0-11 km/h
Tyre size (8 ply) 23.1x26
Max. theoretical gradeability 43 %
Vertical oscillation ±9°
Engine
Manufacturer/Model Cummins 6BTAA5.9-C170 (Tier 2)
Type Water cooled turbo Diesel
Rated power, SAE J1995 127 kW (170 hp ) @ 2200 rpm
Fuel tank capacity 320 l
Alternative Engine
Manufacturer/Model Cummins QSB6.7-C173 (Tier 3)
Type Water cooled turbo Diesel
Rated power, SAE J1995 129 kW (173 hp ) @ 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors with constant displacement.
Vibration Axial piston pump with variable displacement.
Axial piston motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in drum gear box and in rear axle.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Coolant - no cab
Type of fluid Volume Additional info
Dynapac Coolant 100 18,6 l for Cummins
18,9 l for Deutz
 P/N
25 l can 4812161854
Coolant - with cab
Type of fluid Volume Additional info
Dynapac Coolant 100 19,8 l for Cummins
20,1 l for Deutz
 P/N
25 l can 4812161854
Drum gear
Type of fluid Volume Additional info
Dynapac Gear Oil 300 0,8 l P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885
Drum oil
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 14 l P/N
5 l can 4812161887
20 l can 4812161888
209 l drum 4812161889
Engine
Type of fluid Volume Additional info
Dynapac Engine Oil 200 8 l for Deutz engine P/N
5 l can 4812161855
20 l can 4812161856
209 l drum 4812161857
Dynapac engine Oil 200 7 l for Cummins engine P/N
5 l can 4812161855
20 l can 4812161856
209 l drum 4812161857
Grease
Type of fluid Volume Additional info
Dynapac Roller Grease - P/N
0.4 kgs cartridge 4812030096
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 40 l P/N
5 l can 4812161867
20 l can 4812161868
209 l drum 4812161869

Service Kits

Compaction Analyzer for asphalt (DCA-A)
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81066 DCA-A COMPACTION ANALYZER FOR ASPHALT
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938891
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155792
Edge press kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81129 EDGE PRESS, FRONT RIGHT MOUNTED
Edge press, joint cutter disc
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81101 EDGE PRESS DEVICE, JOINT CUTTER DISC, 150 MM 5.9 INCH
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945908
Service kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106094 (IIIA/T3) Start up kit
COMPACTION Double drum vibratory rollers 4812159672 (IIIB/T4i) Start up kit
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106093 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700950176 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700950176 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700950176 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159383 (IIIB/T4i) No. Oil
COMPACTION Double drum vibratory rollers 4812159384 (IIIB/T4i) Inc. oil
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106091 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3)
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106092 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700950175 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700950175 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700950175 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159381 (IIIB/T4i) No. Oil
COMPACTION Double drum vibratory rollers 4812159382 (IIIB/T4i) Inc. oil
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106090 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700950174 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700950174 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4812159352 (Inc. Oil) (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159352 (IIIB/T4i) Inc. oil
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106091 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3)
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155158
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155698
COMPACTION Double drum vibratory rollers 4812161288 50 pieces.
COMPACTION Double drum vibratory rollers 4812161289 100 pieces.
COMPACTION Double drum vibratory rollers 4812161290 200 pieces
Tachograph kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81083 TACHOGRAPH
COMPACTION Double drum vibratory rollers 470PP81162 TACHOGRAPH, ONLY INSTRUMENT
Working lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81096 std H3
