COMPACTION

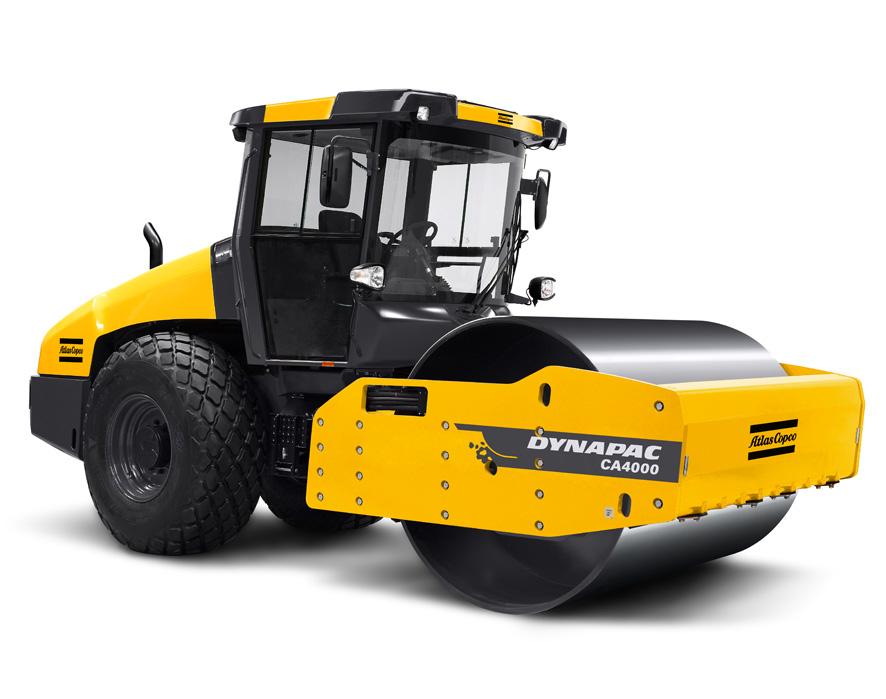

Dynapac CA4000D Single drum vibratory rollers

0
My comparison
  • Pictures

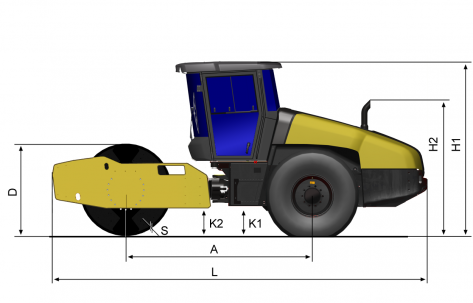

  • Dimensions
A. Wheelbase 2990 mm
B1. Width, front 2300 mm
B2. Width, rear 2130 mm
D. Drum diameter 1520 mm
H1. Height, with ROPS/cab 2880 mm
H2. Height, w/o ROPS/cab 2130 mm
K1. Ground clearance 450 mm
K2. Curb clearance 450 mm
L. Length 5990 mm
O1. Overhang, right 85 mm
O2. Overhang, left 85 mm
R1. Turning radius, outside 5600 mm
R2. Turning radius, inside 3300 mm
S. Drum shell thickness 35 mm
W. Drum width 2130 mm
α. Steering angle ±38°
Discontinued true
Operating Mass: 13100 kg
Static linear load: 41 kg/cm
Compaction width: 2130 mm

Features & benefits

Dynapac Dyn@Lyzer
Dyn@Lyzer

The Dynapac compaction control and documentation system for soil and asphalt rollers

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Technical data

Masses
Operating mass (incl. ROPS) 13100 kg
Operating mass (incl. Cab) 13300 kg
Module mass (front/rear) 8700 kg/ 4600 kg
Max. operating mass 14900 kg
Traction
Speed range 4 / 6 / 7 / 12 km/h
Vertical oscillation ±9°
Tyre size (8 ply) 23.1 x 26 AW
Max. theoretical gradeability 57 %
Engine
Manufacturer/Model Cummins QSB4.5 (Stage IIIA/T3)
Type Water cooled turbo Diesel
Rated power, SAE J1995 119 kW (160 hp ) @ 2200 rpm
Fuel tank capacity 272 l
Alternative Engine
Rated power, SAE J1995 115 kW (154 hp ) @ 2200 rpm
DEF tank capacity 37 l
Hydraulic system
Driving Hydrostatic
Vibration Hydrostatic
Steering Hydrostatic
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in drum gear box and in rear axle.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum oil
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 2 x 2,3 liter Change oil after first 50 hours, then every 2000 hours
Engine
Type of fluid Volume Additional info
Dynapac engine Oil 200 11 liter Change oil every 500 hours or once per year
Hydraulic system
Type of fluid Volume Additional info
Dynapac Hydraulic 300 41 liter Change oil every 2000 hours or yearly.
Transmission oil
Type of fluid Volume Additional info
Dynapac Gear Oil 300 2,5 liter Drum gear, change oil after first 50 hours, then every 1000 hours
Dynapac Gear Oil 300 19,9 liter Limited slip rear axle, change oil after first 500 hours, then every 1000 hours
Dynapac Gear Oil 300 16,9 liter No-spin rear axle, change oil every 1000 hours

Service Kits

Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812157275
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700945657
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158283 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158282 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158690 3B engine
COMPACTION Single drum vibratory rollers 4812158689 Including oil. 3B engine
Service kit , 2000H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158583 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158582 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158693 3B engine
COMPACTION Single drum vibratory rollers 4812158692 Including oil. 3B engine
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158369 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158281 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158688 3B engine
COMPACTION Single drum vibratory rollers 4812158687 Including oil. 3B engine
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812156993 Including oil, 3A engine
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158577 For high static linear load
COMPACTION Single drum vibratory rollers 4812158578 For medium static linear load
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812157779 Tilt
COMPACTION Single drum vibratory rollers 4812157780 Turn

Spare parts manuals

Eager to see the spare parts of Dynapac CA4000D?

Please Log in or Register to MyDynapac to get access.

Compaction data

LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CA4000D?

Please Log in or Register to MyDynapac to get access.
