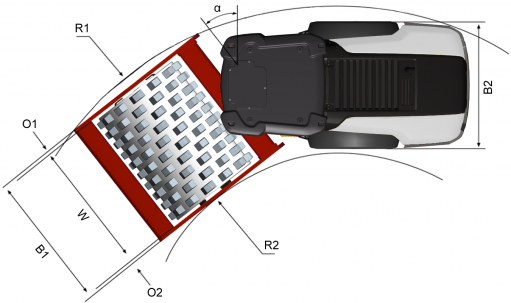

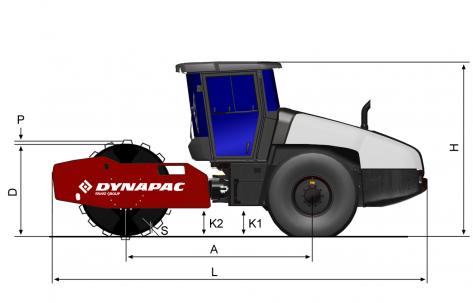

| A. Wheelbase | 3100 mm |
|---|---|
| B1. Width, front | 2340 mm |
| B2. Width, rear | 2130 mm |
| D. Drum diameter | 1500 mm |
| H1. Height, with ROPS/cab | 2970 mm |
| H2. Height, w/o ROPS/cab | 2130 mm |
| K1. Ground clearance | 450 mm |
| K2. Curb clearance | 450 mm |
| L. Length | 5990 mm |
| O1. Overhang, right | 105 mm |
| O2. Overhang, left | 105 mm |
| P. Pad height | 102 mm |
| R1. Turning radius, outside | 5600 mm |
| R2. Turning radius, inside | 3300 mm |
| S. Drum shell thickness | 25 mm |
| W. Drum width | 2130 mm |
| α. Steering angle | ±38° |
| Masses | |
| Operating mass (incl. ROPS) | 12300 kg |
|---|---|
| Operating mass (incl. Cab) | 12500 kg |
| Module mass (front/rear) | 7600 kg/ 4900 kg |
| Max. operating mass | 13100 kg |
| Traction | |
| Speed range (Dual/TC/AS) | 5/6/7/12 km/h |
| Vertical oscillation | ±9° |
| Tyre size (8 ply) | 23.1 x 26 TR |
| Max. theoretical gradeability | 57 % |
| Number of pads | 130 |
| Pad area | 146 cm2 |
| Engine | |
| Manufacturer/Model | Deutz TCD2012L06 (IIIA/T3) |
| Type | Water cooled turbo Diesel |
| Rated power, ISO 14396 | 128 kW (174 hp ) @ 2200 rpm |
| Fuel tank capacity | 255 l |
| Hydraulic system | |
| Driving | Hydrostatic |
| Vibration | Hydrostatic |
| Steering | Hydrostatic |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake |
Failsafe multidisc brake in drum gear box and in rear axle. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Vibrationsvältar med enkelvals | 4700945657 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Vibrationsvältar med enkelvals | 4812158579 | ||
| COMPACTION | Vibrationsvältar med enkelvals | 4812158581 | Drum |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Vibrationsvältar med enkelvals | 4812157779 | Tilt | |
| COMPACTION | Vibrationsvältar med enkelvals | 4812157780 | Turn |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Vibrationsvältar med enkelvals | 4812157275 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Vibrationsvältar med enkelvals | 4812157254 | (IIIA/T3) Start up kit |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Vibrationsvältar med enkelvals | 4812156995 | ||
| COMPACTION | Vibrationsvältar med enkelvals | 4812157277 | Including oil |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Vibrationsvältar med enkelvals | 4812158053 - 3A engine | ||
| COMPACTION | Vibrationsvältar med enkelvals | 4812157255 - 3A engine | Including oil | |
| COMPACTION | Vibrationsvältar med enkelvals | 4812158053 - 3B engine | ||
| COMPACTION | Vibrationsvältar med enkelvals | 4812157255 | Including oil, 3B engine |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Vibrationsvältar med enkelvals | 4812156994 | ||
| COMPACTION | Vibrationsvältar med enkelvals | 4812157363 | Including oil |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Vibrationsvältar med enkelvals | 4812156993 (incl. oil) |
