COMPACTION

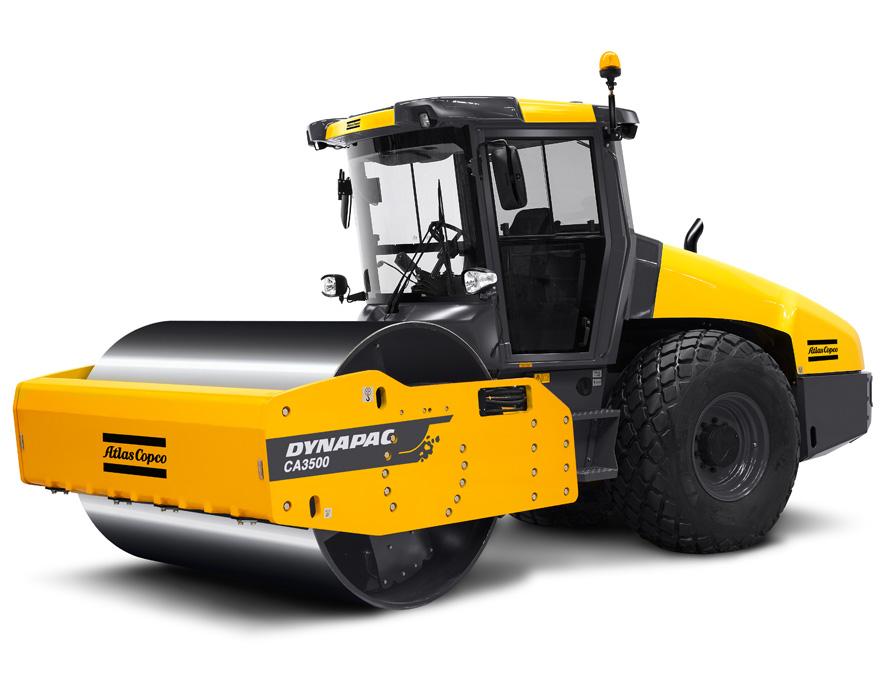

Dynapac CA3500D Single drum vibratory rollers

0
My comparison
  • Pictures

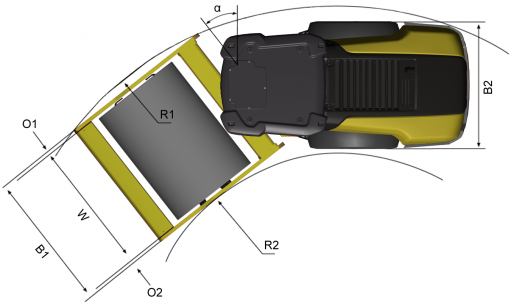

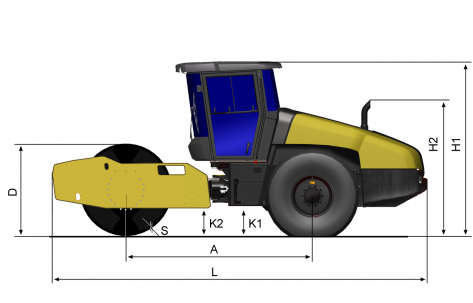

  • Dimensions
A. Wheelbase 2990 mm
B1. Width, front 2304 mm
B2. Width, rear 2130 mm
D. Drum diameter 1520 mm
H1. Height, with ROPS/cab 2880 mm
H2. Height, w/o ROPS/cab 2130 mm
K1. Ground clearance 450 mm
K2. Curb clearance 450 mm
L. Length 5990 mm
O1. Overhang, right 87 mm
O2. Overhang, left 87 mm
R1. Turning radius, outside 5450 mm
R2. Turning radius, inside 3300 mm
S. Drum shell thickness 35 mm
W. Drum width 2130 mm
α. Steering angle ±38°
Discontinued true
Operating Mass: 11900 kg
Static linear load: 36 kg/cm
Compaction width: 2130 mm

Features & benefits

Dynapac Dyn@Lyzer
Dyn@Lyzer

The Dynapac compaction control and documentation system for soil and asphalt rollers

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Dynapac Stage IV / TIER 4f
Stage IV / TIER 4f

Any Road Construction Equipment product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.

Dynapac Vario speed
Vario speed

Vario speed details here

Technical data

Masses
Operating mass (incl. ROPS) 11900 kg
Operating mass (incl. Cab) 12100 kg
Module mass (front/rear) 7600 kg/ 4500 kg
Max. operating mass 13800 kg
Traction
Speed range (Dual/TC/AS) 4/6/7/12 km/h
Vertical oscillation ±9°
Tyre size (8 ply) 23.1 x 26 AW
Max. theoretical gradeability 55 %
Engine
Manufacturer/Model Cummins QSF3.8 (IV/4final)
Type Water cooled turbo Diesel
Rated power, SAE J1995 97 kW (130 hp ) @ 2200 rpm
Fuel tank capacity 272 l
DEF tank capacity 20 l
Alternative Engine
Manufacturer/Model Cummins QSB4.5 (IIIA/3)
Type Water cooled torbo Diesel
Rated power, SAE J1995 97 kW (130 hp ) @ 2200 rpm
Hydraulic system
Driving Hydrostatic
Vibration Hydrostatic
Steering Hydrostatic
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in drum gear box and in rear axle.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum cartridge
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 2,2 l/side P/N
5 l can 4812156456
Drum gear
Type of fluid Volume Additional info
Dynapac Gear Oil 200 2,5 l P/N
5 l can 4812161879
20 l can 4812161880
209 l drum 4812161881
Engine
Type of fluid Volume Additional info
Dynapac Engine Oil 200 11 l for Cummins engine
14 l for Deutz engine		 P/N
5 l can 1630047100
20 l can 1630047200
209 l drum 1630047300
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 41 l P/N
20 l can 9106230330
209 l drum 9106230331
Hydraulic system
Type of fluid Volume Additional info
Dynapac Hydraulic 300 80 l P/N
20 l can 9106230330
209 l drum 9106230331
Rear axle - differential
Type of fluid Volume Additional info
Dynapac Gear Oil 200 12,5 l P/N
5 l can 4812161879
20 l can 4812161880
209 l drum 4812161881
Rear axle - planetary gear
Type of fluid Volume Additional info
Dynapac Gear Oil 200 1,9 l/side P/N
5 l can 4812161879
20 l can 4812161880
209 l drum 4812161881

Service Kits

Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812157275
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700945657
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158690 3B engine
COMPACTION Single drum vibratory rollers 4812158689 (IIIB/T4i) Inc.Oil
COMPACTION Single drum vibratory rollers 4812158282 (IIIA/T3) Inc. Oil
COMPACTION Single drum vibratory rollers 4812158283 (IIIA/T3) No. Oil
Service kit , 2000H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158693 3B engine
COMPACTION Single drum vibratory rollers 4812158692 (IIIB/T4i) Inc.Oil
COMPACTION Single drum vibratory rollers 4812158582 (IIIA/T3) Inc. Oil
COMPACTION Single drum vibratory rollers 4812158583 (IIIA/T3) No. Oil
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158688 3B engine
COMPACTION Single drum vibratory rollers 4812158687 (IIIB/T4i) Inc.Oil
COMPACTION Single drum vibratory rollers 4812158281 (IIIA/T3) Inc. Oil
COMPACTION Single drum vibratory rollers 4812158369 (IIIA/T3) No. Oil
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812188565 (IIIB/T4i) Inc.Oil
COMPACTION Single drum vibratory rollers 4812158565 (IIIA/T3) Inc. Oil
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158579
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812157779 Tilt
COMPACTION Single drum vibratory rollers 4812157780 Turn

Spare parts manuals

Eager to see the spare parts of Dynapac CA3500D?

Please Log in or Register to MyDynapac to get access.

Compaction data

LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CA3500D?

Please Log in or Register to MyDynapac to get access.
