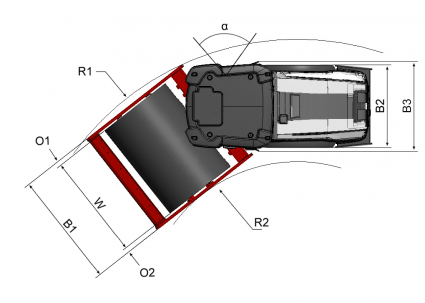

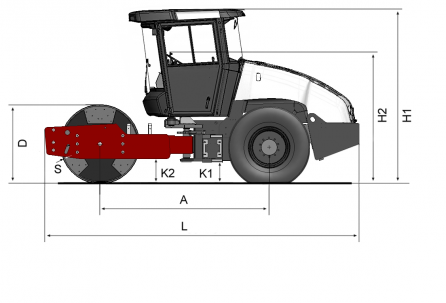

| A. Wheelbase | 2550 mm |
|---|---|
| B1. Width, front | 1855 mm |
| B2. Width, rear | 1680 mm |
| D. Drum diameter | 1220 mm |
| H1. Height, with ROPS/cab | 2830 mm |
| H2. Height, w/o ROPS/cab | 2050 mm |
| K1. Ground clearance | 370 mm |
| K2. Curb clearance | 330 mm |
| L. Length | 4780 mm |
| O1. Overhang, right | 88 mm |
| O2. Overhang, left | 88 mm |
| R1. Turning radius, outside | 5000 mm |
| R2. Turning radius, inside | 2840 mm |
| S. Drum shell thickness | 22 mm |
| W. Drum width | 1680 mm |
| α. Steering angle | ±38° |
| Masses | |
| Operating mass (incl. Cab) | 7180 kg |
|---|---|
| Front module mass | 3550 kg |
| Max. operating mass (full ballast) | 8300 kg |
| Shell pad kit mass | 1192 kg |
| Traction | |
| Speed range | 0 - 5 km/h |
| Tyre size (8 ply) | 13,00 x 24 |
| Theor. gradeability | 55 % |
| Vertical oscillation | ±9° |
| Engine | |
| Manufacturer/Model | Cummins QSB 3.3 (Tier 3) |
| Type | 4 cylindre Water cooled turbo diesel |
| Rated power, SAE J1995 | 60 kW (80 hp ) @ 2200 rpm |
| Fuel tank capacity | 225 l |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motors with constant displacement. |
| Vibration | Axial piston pump with constant displacement. Axial piston motor with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake |
Failsafe multidisc brake in rear axle. |
Standard
Back up alarm, Canopy, Horn, Engine hood with lock, Emergency brake, Two Amplitudes, Rear Axle with Limited-Slip, Warning Lights (Battery level indicator, Air filter, Hydraulic Filter, Brakes, Engine Oil Pressure), Working Lights, Tractor Tires 14,9 x 24 – 8 ply, Hour meter, Neutral starting safety device, Fuel Indicator, Main battery switch, Brake release for towing, Lifting points, Hydraulic pressure points, Platform over shock absorbers
Optional
Luxury Seat, Cabin Rops/Fops, Rops/Fops, Exterior rearview mirror, First Aid Kit, Compaction meter, Tool box, Traffic Lights, Rotating Beacon, First aid kit, Interior rearview mirror, D and PD Transformation Kit
