Dynapac CA150A Single drum vibratory rollers

0
My comparison
  • Pictures

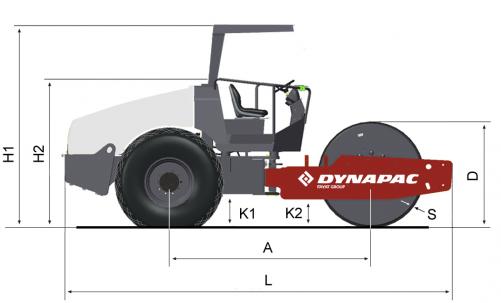

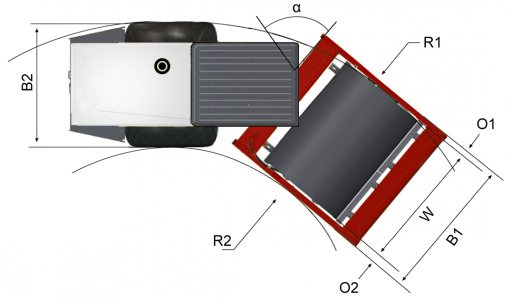

  • Dimensions
A. Wheelbase 2545 mm
B1. Width, front 1852 mm
B2. Width, rear 1676 mm
D. Drum diameter 1219 mm
H1. Height, with ROPS 2825 mm
H2. Height, w/o ROPS/cab 2051 mm
K1. Ground clearance 328 mm
K2. Curb clearance 366 mm
L. Length 4776 mm
S. Drum shell thickness 20 mm
W. Drum width 1680 mm
α. Steering angle ±38°
Discontinued true
Operating Mass: 7600 kg
Static linear load: 23.3 kg/cm
Compaction width: 1680 mm

Technical data

Masses
Operating mass (incl. ROPS) 7600 kg
Operating mass (incl. Cab) kg
Module mass (front/rear) 3900 kg/ 3700 kg
Max. operating mass 8300 kg
Traction
Speed range (Dual/TC/AS) 0-5 km/h
Tyre size (8 ply) 13.00-24
Max. theoretical gradeability 55 %
Vertical oscillation ±9
Engine
Manufacturer / Model Cummins QSB 3.3 Tier 3
Type 4 cylindre Water cooled turbo diesel
Rated power, SAE J1995 60 kW (80 hp ) @ 2200 rpm
Fuel tank capacity 225 l
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motor with constant displacement.
Axial piston motor with constant displacement.
Vibration Axial piston pump with variable displacement.
Axial piston motor (2) with variable displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in rear axle.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Coolant - no cab
Type of fluid Volume Additional info
Dynapac Coolant 100 24 l for IIIA/T3
26 l for IIIB/T4i
(mixed with water 50/50)		 P/N
25 l can 4812161854
Coolant - with cab
Type of fluid Volume Additional info
Dynapac Coolant 100 26,2 l for IIIA/T3
28,2 l for IIIB/T4i
(mixed with water 50/50)		 P/N
25 l can 4812161854
Drum cartridge
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 2,2 l/side P/N
5 l can 4812161887
20 l can 4812161888
209 l drum 4812161889
Drum gear
Type of fluid Volume Additional info
Dynapac Gear Oil 300 2,5 l P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885
Engine
Type of fluid Volume Additional info
Dynapac Engine Oil 200 11 l lubricating Oil P/N
5 l can 4812161855
20 l can 4812161856
209 l drum 4812161857
Grease
Type of fluid Volume Additional info
Dynapac Roller Grease - P/N
0,4 kgs cartridge 4812030096
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 41 l P/N
5 l can 4812161867
20 l can 4812161868
209 l drum 4812161869
Hydraulic system
Type of fluid Volume Additional info
Dynapac Hydraulic 300 80 l P/N
5 l can 4812161867
20 l can 4812161868
209 l drum 4812161869
Rear axle - differential
Type of fluid Volume Additional info
Dynapac Gear Oil 300 16,5 l
12,5 l for No-Spin
 P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885
Rear axle - planetary gear
Type of fluid Volume Additional info
Dynapac Gear Oil 300 1,75 l/side
1,9 l/side for No Spin
 P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885

Service Kits

Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812157275
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700945657
Service kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812160178 Start up kit Cummins QSB 4.5 (Service Kit non-remote engine oil filter)
COMPACTION Single drum vibratory rollers 4812158370 Start up kit Cummins QSB 4.5 (Service Kit remote engine oil filter)
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812160174 (IIIA/T3) Service Kit non-remote engine oil filter (No, oil)
COMPACTION Single drum vibratory rollers 4812160175 (IIIA/T3) Service Kit non-remote engine oil filter, (Inc. oil)
COMPACTION Single drum vibratory rollers 4812158282 (IIIA/T3) Service kit remote engine oil filter, (Inc. oil)
Service kit , 2000H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812160176 (IIIA/T3) Service Kit non-remote engine oil filter (No, oil)
COMPACTION Single drum vibratory rollers 4812160177 (IIIA/T3) Service Kit non-remote engine oil filter, (Inc. oil)
COMPACTION Single drum vibratory rollers 4812158583 (IIIA/T3) Service kit remote engine oil filter, (Inc. oil)
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812160172 (IIIA/T3) Service Kit non-remote engine oil filter (No, oil)
COMPACTION Single drum vibratory rollers 4812160173 (IIIA/T3) Service Kit non-remote engine oil filter, (Inc. oil)
COMPACTION Single drum vibratory rollers 4812158281 (IIIA/T3) Service kit remote engine oil filter, (Inc. oil)
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812156993 (IIIA/T3) Service Kit non-remote engine oil filter, (Inc. oil)
COMPACTION Single drum vibratory rollers 4812156993 (IIIA/T3) Service kit remote engine oil filter, (Inc. oil)
COMPACTION Single drum vibratory rollers 4812159996 Rear axle limited slip, incl. oil
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158579
Steering hitch kit
