CC384HF Double drum vibratory rollers

0
My comparison
  • Pictures

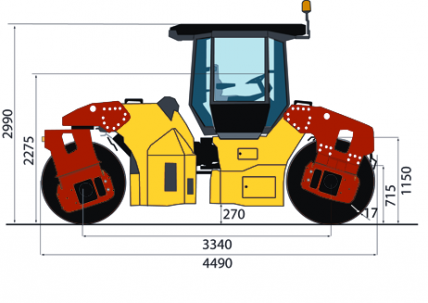

  • Dimensions
D. Drum diameter 1150 mm
H1. Height, with ROPS/cab
H2. Height, w/o ROPS/cab
L. Length 4490 mm
R. Turning radius, outside
S. Drum shell thickness
Discontinued true

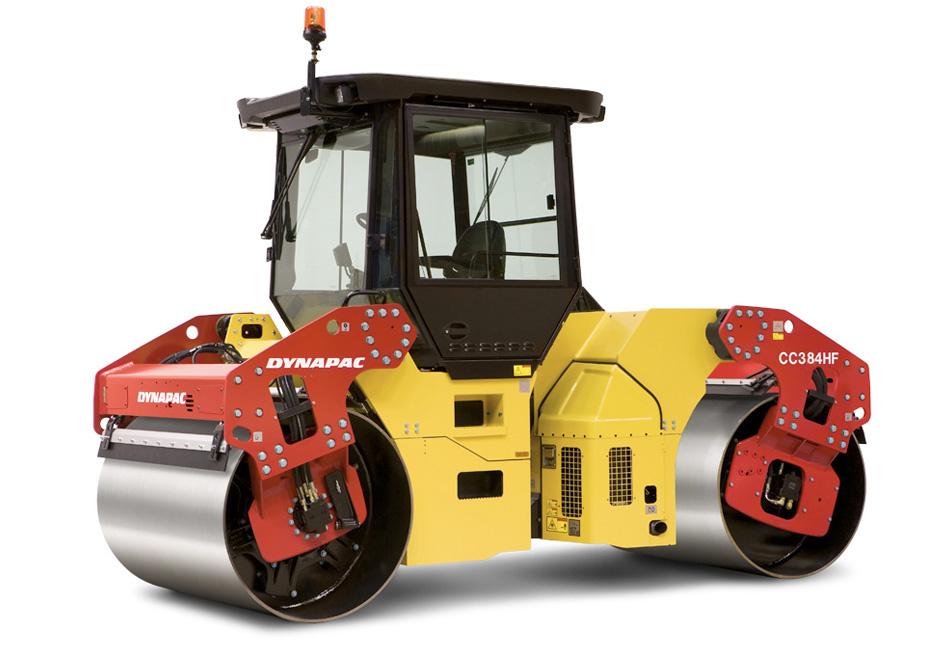

Dynapac is proud to offer a 9.5 ton roller in the 1730 mm (68 inch) drum width class. Like all Dynapac rollers, the CC384HF is designed with efficiency in mind; application efficiency, operator efficiency, compaction control efficiency and service efficiency. Performance, visibility, operators comfort, compaction control and serviceability for the CC line will appeal to owners, operators and service crews. The environmental benefits appeal to everyone.
Operating Mass: 9400 kg
SLL (front/rear): 27.2/ 27.2 kg/cm
Compaction width: 1730 mm

Technical data

Masses
Max. operating mass 10700 kg
Operating mass (incl. ROPS) 9400 kg
Operating mass (incl. Cab) 9600 kg
Operating mass (incl. Cab and offset)
Module mass (front/rear) 4700 kg/ 4700 kg
Traction
Speed range 0 - 12 km/h
Vertical oscillation ±7
Max. theoretical gradeability 37 %
Engine
Manufacturer/Model Deutz TCD 3.6 IIIB/T4i
Type Water cooled turbo Diesel
Rated power, SAE J1995 75 kW (100 hp ) @ 2200 rpm
Fuel tank capacity 130 l
Alternative Engine
Manufacturer/Model Cummins QSB 3.3 IIIA/T3
Type Water cooled turbo Diesel
Rated power, SAE J1995 74 kW (99 hp ) @ 2200 rpm
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (2) with variable displacement.
Vibration Axial piston pumps(2) with variable displacem.
Axial piston motors(2) with const. displacem.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum gear
Type of fluid Volume Additional info
Atlas Copco Gearbox 100 0,8 l P/N
5 l can 4812008274
20 l can 4812008275
209 l drum 4812008276
Drum oil
Type of fluid Volume Additional info
Atlas Copco Drum Oil 1000 14 l P/N
5 l can 4812156456
Engine
Type of fluid Volume Additional info
Engine Oil Paroil E 7 l for Cummins engine
8 l for Deutz engine		 P/N
5 l can 1615595300
20 l can 1615595400
209 l drum 1615595500
Hydraulic oil tank
Type of fluid Volume Additional info
Atlas Copco Hydraulic Oil 300 40 l P/N
20 l can 9106230330
209 l drum 9106230331

Service Kits

Compaction Analyzer for asphalt (DCA-A)
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81066 DCA-A COMPACTION ANALYZER FOR ASPHALT
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938891
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155792
Edge press kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81129 EDGE PRESS, FRONT RIGHT MOUNTED
Edge press, joint cutter disc
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81101 EDGE PRESS DEVICE, JOINT CUTTER DISC, 150 MM 5.9 INCH
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945908
Service kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106094 (IIIA/T3) Start up kit
COMPACTION Double drum vibratory rollers 4812159672 (IIIB/T4i) Start up kit
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106093 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700950176 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700950176 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700950176 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159383 (IIIB/T4i) No. Oil
COMPACTION Double drum vibratory rollers 4812159384 (IIIB/T4i) Inc. oil
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106091 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3)
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106092 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700950175 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700950175 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700950175 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159381 (IIIB/T4i) No. Oil
COMPACTION Double drum vibratory rollers 4812159382 (IIIB/T4i) Inc. oil
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106090 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700950174 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700950174 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4812159352 (Inc. Oil) (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159352 (IIIB/T4i) Inc. oil
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106091 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3)
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155158
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155698
COMPACTION Double drum vibratory rollers 4812161288 50 pieces.
COMPACTION Double drum vibratory rollers 4812161289 100 pieces.
COMPACTION Double drum vibratory rollers 4812161290 200 pieces
Tachograph kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81083 TACHOGRAPH
COMPACTION Double drum vibratory rollers 470PP81162 TACHOGRAPH, ONLY INSTRUMENT
Working lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81096 std H3

Spare parts manuals
