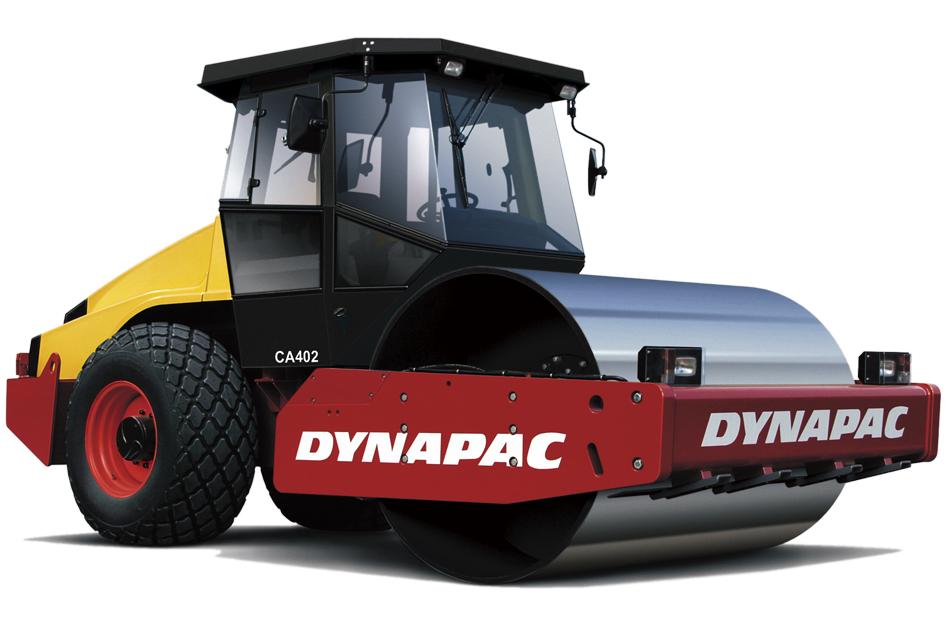

CA402D Single drum vibratory rollers

0
My comparison
  • Pictures

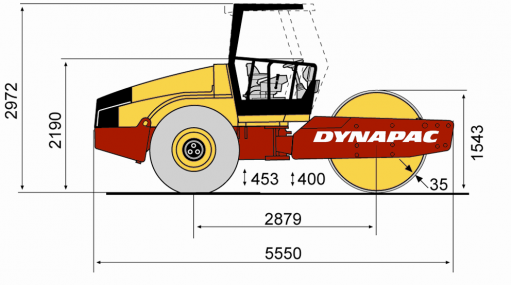

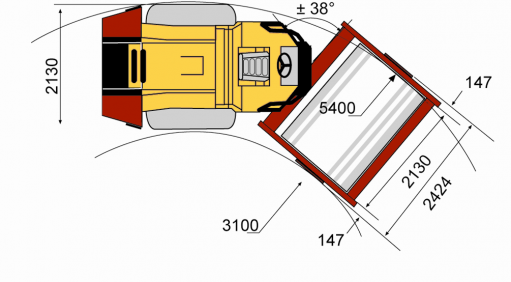

  • Dimensions
Drum width 2130 mm
Drum diameter 1543 mm
Drum shell thickness 35 mm
Length 5550 mm
Width 2424 mm
Height, with ROPS 2972 mm
Height, without ROPS 2190 mm
Discontinued true
Operating Mass: 13800 kg
Static linear load: 44.1 kg/cm
Compaction width: 2130 mm

Technical data

Masses
Max. operating mass 15000 kg
Operating mass (incl. ROPS) 13800 kg
Module mass (front/rear) 9300 kg/ 4500 kg
Traction
Speed range (Dual/TC/AS) 0-9
Tyre size (8 ply) 23,1x26
Max. theoretical gradeability 57 %
Vertical oscillation ±9°
Engine
Manufacturer/Model Cummins QSB4.5
Type Water cooled turbo diesel
Rated power 93 kW
Rated power 125.0 hp
Rated power @ 2200 rpm
Fuel tank capacity 250 l
Rated power, SAE J1995 93 kW (125.0 hp ) @ 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motor with constant displacement.
Axial piston motor with constant displacement.
Vibration Axial piston pump with variable displacement.
Axial piston motor with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in drum gear box and in rear axle.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum oil
Type of fluid Volume Additional info
Atlas Copco Drum Oil 1000 2 x 2,3 liter Change oil after first 50 hours, then every 2000 hours
Engine
Type of fluid Volume Additional info
Atlas Copco Engine 100 11 liter Change oil every 500 hours or once per year
Hydraulic system
Type of fluid Volume Additional info
Atlas Copco Hydraulic Oil 300 41 liter Change oil every 2000 hours or yearly.
Transmission oil
Type of fluid Volume Additional info
Dynapac Gear Oil 300 2,5 liter Drum gear, change oil after first 50 hours, then every 1000 hours
Dynapac Gear Oil 300 19,9 liter Limited slip rear axle, change oil after first 500 hours, then every 1000 hours
Dynapac Gear Oil 300 16,9 liter No-spin rear axle, change oil every 1000 hours

Service Kits

Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812157275
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700945657
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158283 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158282 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158690 3B engine
COMPACTION Single drum vibratory rollers 4812158689 Including oil. 3B engine
Service kit , 2000H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158583 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158582 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158693 3B engine
COMPACTION Single drum vibratory rollers 4812158692 Including oil. 3B engine
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158369 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158281 Including oil, 3A engine
COMPACTION Single drum vibratory rollers 4812158688 3B engine
COMPACTION Single drum vibratory rollers 4812158687 Including oil. 3B engine
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812156993 Including oil, 3A engine
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812158579
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4812157779 Tilt
COMPACTION Single drum vibratory rollers 4812157780 Turn

Spare parts manuals

Eager to see the spare parts of CA402D?

Please Log in or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of CA402D?

Please Log in or Register to MyDynapac to get access.
