CA252 Single drum vibratory rollers

0
My comparison
  • Pictures

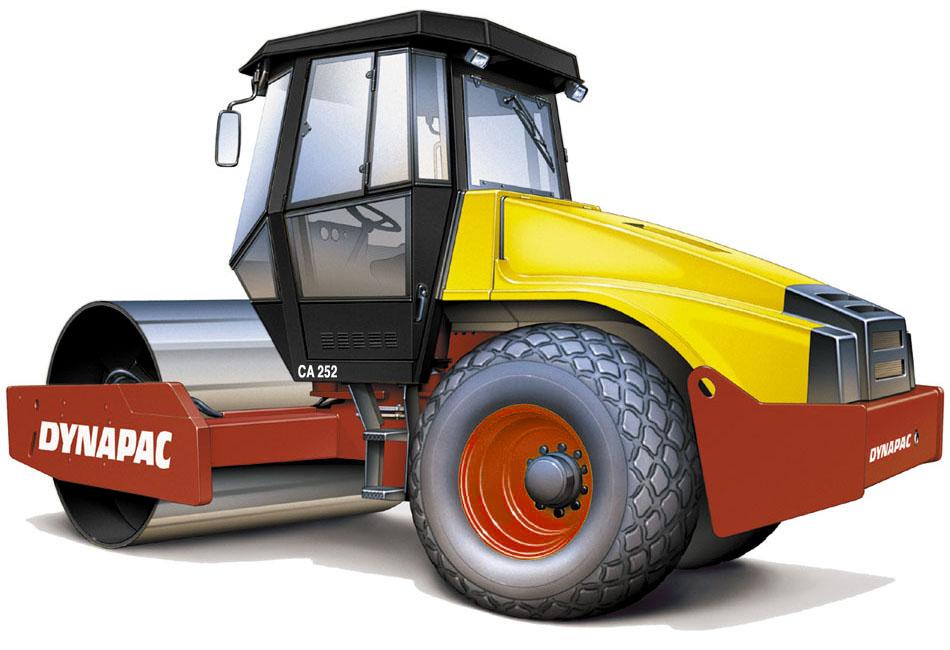

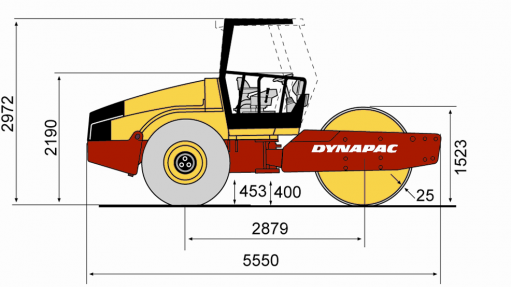

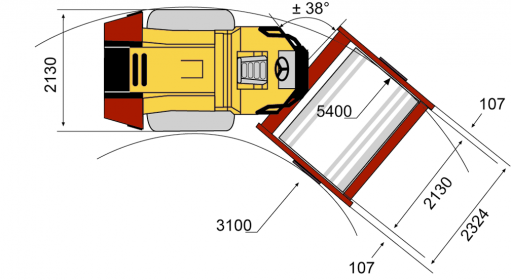

  • Dimensions
Drum width 2130 mm
Drum diameter 1523 mm
Drum shell thickness 25 mm
Height, with ROPS 2972 mm
Height, without ROPS 2190 mm
Length 5.55 mm
Width 2324 mm
Discontinued true
Operating Mass: 10300 kg
Static linear load: 27.7 kg/cm
Compaction width: 2130 mm

Technical data

Masses
Max. operating mass 13400 kg
Operating mass (incl. ROPS) 10300 kg
Operating mass (incl. Cab) kg
Module mass (front/rear) 5900 kg/ 4400 kg
Traction
Speed range (Dual/TC/AS) 0-17
Vertical oscillation ±9°
Tyre size (8 ply) 23,1x26
Max. theoretical gradeability 42 %
Engine
Manufacturer/Model Cummins QSB4.5
Type Water cooled turbo Diesel
Fuel tank capacity 250 l
Rated power, SAE J1995 93 kW (125 hp ) @ 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motor with variable displacement.
Service brake Hydrostatic in forward and reverse lever.
Steering Gear pump with constant displacem.
Vibration Axial piston pump with variable displacement.
Axial piston motor with constant displacement.
Parking/
Emergency brake		 Failsafe multidisc brake in rear axle.
Failsafe multidisc brake in front drum motor.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum oil
Type of fluid Volume Additional info
Atlas Copco Drum Oil 1000 2 x 2,3 liter Change oil after first 50 hours then every 2000 hours (yearly)
Engine
Type of fluid Volume Additional info
Atlas Copco Engine 100 11 liter Change oil after first 50 hours, then every 500 hours (every 3 months)
Hydraulic system
Type of fluid Volume Additional info
Atlas Copco Hydraulic Oil 300 52 liter Change oil every 2000 hours (yearly)
Transmission oil
Type of fluid Volume Additional info
Dynapac Gear Oil 300 3 liter Drum gear, change oil every 2000 hours (yearly)
Dynapac Gear Oil 300 16 liter Rear axle, change oil every 1000 hours (every 6 months)

Service Kits

Back up alarm kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700376965 BACK UP ALARM (LIGHTS REQUIRED)
Compaction meter kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700372293 COMPACTION METER (NOT FOR PD)
Driving lights kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700374330
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700938891
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700945657 For machines with drum cartridges, produced after week 36, 2006.
COMPACTION Single drum vibratory rollers 4700938894 For machines without drum cartridges, produced prior to week 36, 2006.
Rear view mirrors kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700374576 REAR VIEW MIRRORS, FOR PLATFORM
Rotating beacon kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700372303 ROTATING BEACON FOR ROPS (W/O WORKING LIGHTS ON ROPS)
COMPACTION Single drum vibratory rollers 4700384381 ROTATING BEACON, STANDARD CAB (ONLY IN COMBINATION WITH WORKING LIGHTS)
Seat belt kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700395541 SEAT BELT 3"
COMPACTION Single drum vibratory rollers 4700391683 SEAT BELT 3" FOR PLATFORM
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700945791 Cummins QSB 4.5C
COMPACTION Single drum vibratory rollers 4700939570 Deutz BF4M 2012C
COMPACTION Single drum vibratory rollers 4700938467 Cummins 4BTA 3.9
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700938527 Cummins 4BTA 3.9
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700950323 Cummins QSB 4.5C
COMPACTION Single drum vibratory rollers 4700950321 Deutz BF4M 2012C
COMPACTION Single drum vibratory rollers 4700950318 Cummins 4BTA 3.9
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700945789 Cummins QSB 4.5C
COMPACTION Single drum vibratory rollers 4700939568 Deutz BF4M 2012C
COMPACTION Single drum vibratory rollers 4700938466 Cummins 4BTA 3.9
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700938527 Cummins 4BTA 3.9
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700938558
Working lights kit
Category Subcategory P/N Additional info
COMPACTION Single drum vibratory rollers 4700374338
COMPACTION Single drum vibratory rollers 4700385356
COMPACTION Single drum vibratory rollers 4700384379
